DSP1580 Active Line Array PA Speaker System - 翻译中...

Fitur

● Compact coaxial design for precise point-source sound reproduction.
● Built-in 2kHz crossover ensures smooth frequency transition between HF and MF drivers.
● High acoustic efficiency with 140°×30° dispersion for optimal coverage.
● Featuring 1×1.5" HF driver, 1×6.5" MF driver, and 2×15" subwoofers, the whole system delivers clear, balanced sound with powerful low-frequency extension.
● The whole system delivers a maximum sound pressure level of 132dB with a sensitivity of 98dB, ensuring powerful and dynamic sound performance.

Hubungi sekarang Tinggalkan pesan Unduh

Perkenalan
Spesifikasi

翻译中...

Model	DSP1580
Whole System
MAX. SPL.	132dB
Sensitivity	98dB
Full-Range Speaker
Frequency Response	75Hz-20KHz (±3dB)
Sensitivity	95dB/W (lm)
MAX. SPL.	120dB MAX.
Nominal Impedance	8Ω
Nominal Power	200W
Peak Power	800W Peak
Dispersion (H×V)	140°×30°
Crossover Point	Built-in crossover 2KHz
System Type	Passive 2-way coaxial line array
HF drivers	1×1.5" HF driver (38mm voice coil)
MF drivers	1×6.5" MF driver (38mm voice coil)
Paint	Scratch-resistant black speckled paint
Dimensions (H×W×D)	230×270×230 mm
Net Weight	5.5kg
Dual 15-Inch Subwoofer
Frequency Response	30Hz-200Hz (±3dB)
Sensitivity	95dB/W (lm)
MAX. SPL.	125dB MAX.
Nominal Impedance	8Ω
Nominal Power	1200W
Peak Power	4800W
Amplifier Power	1200W+800W+800W (3 channels)
LF Drivers	2×15" LF drivers (75mm voice coil)
Dimensions (H×W×D)	1000×445×455 mm
Net Weight	44kg

PREV: LA0316 Active Column Array Speaker System with 12 Inch Subwoofer - 翻译中...

Berikutnya: DSP1280F Portable Waterproof Active Line Array Column PA Speaker - 翻译中...

Produk sesuai

Subwoofer bertenaga LA1428SASeptember 21, 2018Subwoofer aktif dilengkapi dengan woofer panjang, memberikan kinerja bass yang tangguh. Badan kotak speaker dibuat dengan menggunakan kayu lapis khusus yang dirancang untuk kapal laut, memastikan pengecualian...view

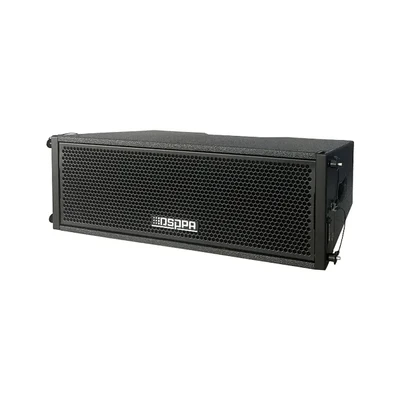

PL206 Passive Line Array Full-Range Speaker - 翻译中...March 27, 2026The PL206 is a compact line array speaker engineered to deliver strong output with clear and well-defined sound across a frequency range of 150 Hz to 18 kHz.It is equipped with dual 6.5-inch low-frequ...view
