CMA20 6-Zone Remote Paging Station - 翻译中...

Fitur

● Balanced Line Level Output: It has balanced output to be able to extend to long distance operation.
● RJ-45 Sockets: Each paging station has two RJ-45 sockets. Use CAT5 Ethernet cable to connect to the amplifier. It can be extended up to 6 paging stations.
● Zone Switch: Each unit has two zone switches. When the zone is selected, LED indicator will light up.
● TALK Button: Press TALK button, if there is other higher priority paging station is operating, the LED indicator will be flashing; if there is no other higher priority paging station operating, this paging station will trigger the amplifier to activate preset zones. After announcement, release TALK button, all of the preset Zone LED will light off.

Hubungi sekarang Tinggalkan pesan Unduh

Perkenalan
Spesifikasi

翻译中...

Model	CMA20
Power Source Input	24V DC, 500mA
Current Consumption	＜50mA
Output Level	1V
Frequency Response	100Hz~15kHz
Speech Filter	315Hz (-3dB), 6dB/octave
Distortion	＜1%
Interconnection	RJ-45×2
Indicators	Z1~Z2 LED, green Lock LED, green TALK LED, green/amber two colors
Dimensions (H×W×D)	55×108×240mm
Weight	1kg

PREV: CMA01V Wall Panel with Volume Control - 翻译中...

Berikutnya: P-6112 P-6124 P-60W P-60M Multi-function Matrix PA System - 翻译中...

Produk sesuai

DMA6112 Amplifier matriks Audio Digital, 6 saluran 120W dengan Remote kontrolJanuary 5, 2024Sistem amplifier dirancang dengan sasis besi ramping dan layar sentuh 4.3 inci untuk pengoperasian yang mudah. Sasis 2U dapat dipasang dengan mudah di Kabinet. Ini menawarkan berbagai fungsi termasuk...view
Panel kontrol sentuh Wallmount Bluetooth DMA60WApril 26, 2024Bekerja dengan DMA6112/DMA6124.view

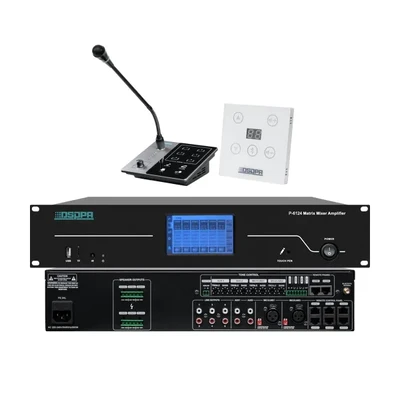

P-6112 P-6124 P-60W P-60M Multi-function Matrix PA System - 翻译中...March 10, 2026The P-6112 P-6124 P-60M P-60W multi-function matrix public address system is a newly designed and highly integrated audio matrix host system. This new system not only features an 8 × 6 signal matrix ...view
