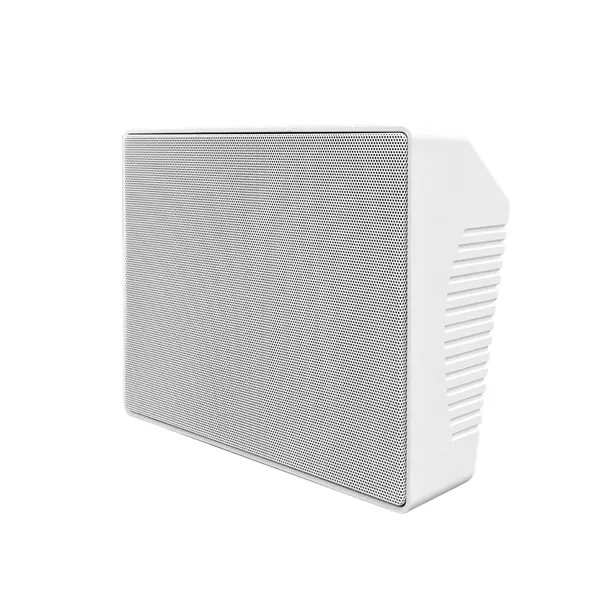

DSP4008 IP Network Wall Mounted Speaker - 翻译中...

Fitur

● Built-in 15W Class-D power amplifier with a frequency response range of 80Hz to 18KHz and a maximum sound pressure level of 100dB.
● Supports PoE (IEEE802.3af/at) or external power supply (DC 24V 2A).
● Supports 48K OPUS high-quality audio codec.
● Compatible with the standard SIP protocol and ONVIF protocols, allowing integration with network cameras for security applications.
● Supports parameters configuration via web interface or software tools.
● Supports multiple SIP accounts, allowing registration on up to three SIP systems for different functional requirements.
● Alarm input interface supports HTTP API alarm signal transmission and pre-recorded audio playback.
● Built-in microphone design with excellent sound pickup, combined with an external button for easy two-way communication.
● Can be connected to a 15W analog sub speaker.

Hubungi sekarang Tinggalkan pesan Unduh

Perkenalan
Spesifikasi

翻译中...

Model	DSP4008
Speaker
Speaker Unit	1×4.5" LF + 1×2" HF
Sensitivity	90dB/1m/1W
MAX. SPL.	100dB
Amplifier	Class-D power amplifier
Rated Power	DC: 8Ω 15W or PoE: af-8Ω 8W / at-8Ω 15W
Frequency Response	80Hz~18KHz
Coverage	90°H×50°V, effective range 30㎡
Audio	Mono
THD at Rated Power @1KHz	0.2%
Microphone
Microphone	Electret condenser microphone
Directivity	Omnidirectional
Installation Method	Built-in
Sensitivity	-36dB±2dB
S/N Ratio	65dB
Input MAX. SPL.	110dB (THD≤3%)
Maximum Pickup Distance	Up to 10m in front under 50dB ambient noise
Audio
Audio Codec	G.722, G.711 A-law, G.711 U-law, Opus
Audio Streaming	MP3 with 8-48KHz sampling rate, 64-320kbps bitrate, mono or stereo
Interface
Interface	1×RJ45 port (with PoE support)
	1×10-pin 3.5mm Phoenix terminal block (for dry contact, switch signal, button, button indicator, and sub speaker)
	1×DC jack (5.5×2.1mm)
Network
Network Interface	10/100Mbps, support PoE IEEE 802.3af/at
Network Protocol	SIP (RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH
Management
Configuration Interface	Web management interface or auto-provisioning server
Auto-Provisioning	MQTT IoT protocol
Hardware Parameters
Memory	128MB RAM, 256MB flash
Power Input	PoE IEEE802.af/at adaptive or DC 24V-2A input
Enclosure	ABS
Color	White
Weight	1.5KG
Dimensions	260×200×100mm
Installation Method	Wall mount
Environment Parameters
Installation Environment	Indoor
Operating Temperature	-20℃-50℃ (-4℉-122℉)
Storage Temperature	-40℃-70℃ (-40℉-158℉)
Humidity	10%-95% RH, non-condensing
Certification
Certification	EN 55032:2015, EN 55035:2017, EN61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Pat 15B

PREV: DSP3081 2-Way 8'' 200W Coaxial Wall Mount Speaker - 翻译中...

Berikutnya: Tidak ada informasi

Produk sesuai

D6565 speaker kabinet dua arah profesional, 12 inci 350WDecember 19, 2017D6565 adalah pengeras suara dua arah profesional. Ini cocok dengan bass 12 inci dan driver tiga inci, yang memberikan suara jelas dan lucu. Speaker ini dirancang dengan respons frekuensi lebar (55Hz...view
D6563 speaker kabinet dua arah profesional, 8 inci 150WDecember 14, 2017Speaker konferensi ini adalah perangkat audio serbaguna yang menampilkan desain fase terbalik untuk peningkatan kinerja frekuensi rendah, dengan tampilan yang elegan dan pemasangan mudah, cocok untuk berbagai saya...view

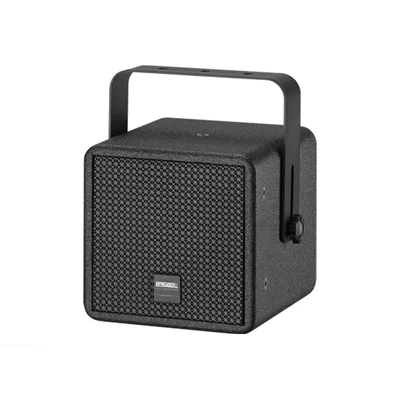

DSP3061 2-Way 6'' 120W Coaxial Wall Mount Speaker - 翻译中...June 18, 2025DSP3061 6'' 120W Coaxial Speaker employs a 38.5mm ferrite driver with a voice coil with high stability, high temperature resistance, and slow thermal demagnetization effect. It can be used in many pla...view
