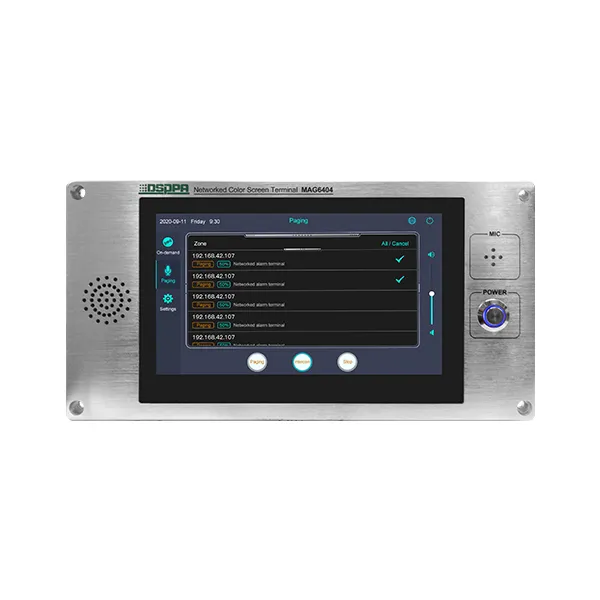

MAG6404 Networked Color Screen Terminal - 翻译中...

Fitur

● Touch screen control, luxurious appearance design, with built-in 7" 800*480 LCD true color display screen and capacitive touch screen.
● With basic operating functions of the host, including audio source selection and other playback control.
● The host can play programs directly to this terminal, and the terminal can play programs on the host.
● Can support host paging forced overridden service. The terminal can page other zones, and it can support the forced overridden broadcast service such as telephone paging and host alarm.
● With short circuit and 12V level output interfaces.
● With screen saver function, for automatic energy-saving operation.

Hubungi sekarang Tinggalkan pesan Unduh

Perkenalan
Spesifikasi

翻译中...

Model		MAG6404
AUX IN	Input Sensitivity	300mV±50mV
	Effective Frequency of Line Gain Limit (Frequency response ±3dB)	40Hz-15kHz
	THD (1Kz 1/3 rated output voltage)	≤1%
	Noise	≤3mV
	SNR	≥70 dB
AUX OUT	Output Sensitivity	1.1V±0.2V
	Frequency Response	40Hz-16kHz
	Distortion	≤1%
	Noise	≤0.5mV
	SNR	≥70 dB
Maximum Output Power of Amplifier	Independent Channel Mode (2 channels)	10W/4Ω
Maximum Harmonic Distortion of Amplifier		≤1%
Built-in Speaker		3W/8Ω
MIC IN	Input Sensitivity	5-15 mV
	Frequency Response	300Hz-3.2kHz
	Distortion	≤1%
	Noise	≤5 mV
	SNR (30KHz low pass)	≥65dB
Supply Voltage (DC)		12V-14V
Over Current, Over Heating, Over Voltage and Under Voltage Protection		Satisfied
Package Dimensions (L×W×H mm)		397×236×121
Machine Dimensions (L×W×H mm)		256×130×57
Gross Weight		1.9kg
Net Weight		1.2kg
