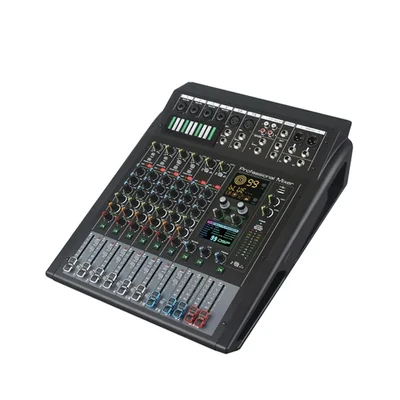

Mixer Audio DMX12-Channel

Fitur

● DMX08, DMX12, DM16 8, 12, 16 XLR input saluran mono seimbang. Desain sirkuit kebisingan ultra-rendah. 3 pengaturan ekualisasi per saluran senyap Attenuator fader halus 60MM. Retur 1 set, 1 set output RAC. Catu daya phantom 48V. 16 jenis efektor digital DSP. USB, rekaman Bluetooth USB. Layar LED, lampu tingkat tiga warna segmen sepuluh 1 set output bus stereo 2 set output bus AUX

  • Pendahuluan
  • Spesifikasi
  • Connection

Items

DMX08

DMX12

DMX16

MAX. Output Level

18dB

S/N

83dB

THD

0.02% @0dB 1KHz

Frequency Response

20Hz~20KHz±0.5dB

Channel Crosstalk

-75dB @ 1KHz

Input Impedance MIC

600Ω

LINE

10KΩ

Output Impedance

100Ω

MIC IN

-60dB

LINE IN

-40dB

Stereo Input Impedance

10KΩ

/

Channel Gain

-30dB

/

3-band EQ

±15dB

/

HI

12KHz 15dB ±3dB

/

MID

2.5KHz 15dB ±3dB

/

LOW

80Hz 15dB ±3dB

/

Output Power

30W

/

Power Supply

100V-240V/50Hz

/

Package Dimensions

440×440×165mm

555×440×165mm

670×440×165mm

Product Dimensions

385×367×100mm

505×367×100mm

620×367×100mm

Gross Weight

5kg

6kg

7.5kg

Net Weight

4kg

5kg

6.2kg

Mixer Audio DMX12-Channel
